Panasonic

Complete set of boards consisting of :

Mainboard 23873799 / 17MB185EB

T-con 6870C-0908B / 6871L-6878D

Power supply 23873413 / 17PW74

Used in TX-42MZ800E

Used with Panel/display LE420AQD EQ D2

Only sold as complete…

Complete set of boards consisting of :

Mainboard 23573825 / 17MB130T

T-con 6870C-0769A / 6871L-5951A

Power supply 23589808 / 17IPS72P

Used in TX-43GX610E

Used with Panel/display VES430QNUL-2D-U02

Only sold as complete…

Complete set of boards consisting of :

Mainboard T8-1M25E15-MA200AA / 40-MT24AE-MAD4HG

T-con EAFDK4013

Led driver PW.ALD64C.781 / 81-BLI12X-C110002

Power supply PW.A218W1.781 / 81-PWE16X-C220004

Used in TV-50W93AE6

Used with…

Complete set of boards consisting of :

Mainboard TXN/A1YAUE / TNPH1038 1A

T-con 6870C-0450A / 6871L-3218A

Led driver 6917L-0137A / PPW-LE55TM-O

Power supply TXN/P1YAUE / TNPA5766 1P

Used in TX-L55ET60E

Used with…

Complete set of boards consisting of :

Mainboard TXN/A1DHXE / TNPH1024 A1

Power supply TZRNP01BSXE

Used in TX-40HXN888

Used with Panel/display V400DJ2-B02

Only sold as complete set.

ALWAYS CHECK THE "TXN" OR "TZR" NUMBERS.

Complete set of boards consisting of :

Mainboard 23845725 / 17MB185 / 180721R2A

T-con HV430QUBF70 / 44-97701766E / 47-6021477

Power supply 23623614 / 17IPS72P

Used in TX-43MX700E

Used with Panel/display…

Complete set of boards consisting of :

Mainboard 23816831 / 17MB185 / 180721R2A

T-con HV650QUBF70 / 44-9771601O / 47-6021332

Power supply 23809407 / 17IPS72

Used in TX-65LX650E

Used with Panel/display VES650QNTB-N2-Z01

Only…

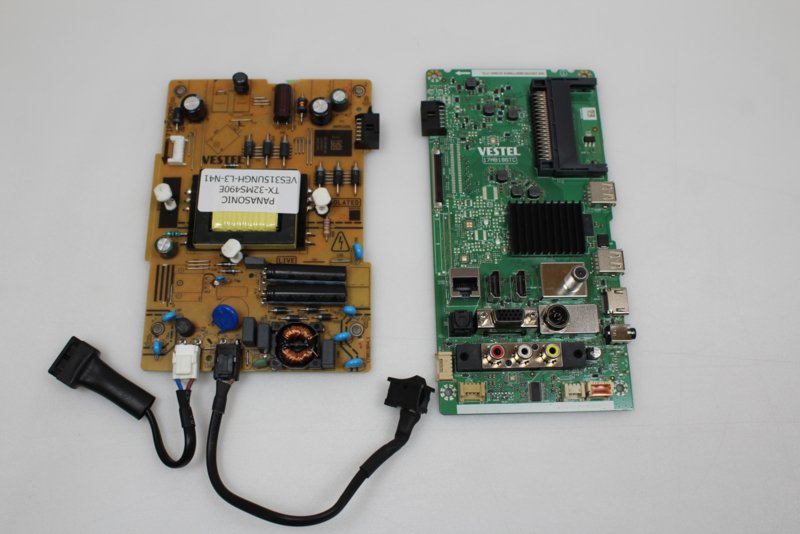

Complete set of boards consisting of :

Mainboard 23837052 / 17MB186TC

Power supply 23664722 / 17IPS62P

Used in TX-32MS490E

Used with Panel/display VES315UNGH-L3-N41

Only sold as complete set.

ALWAYS CHECK THE NUMBER(S) ON…

Complete set of boards consisting of :

Mainboard TXN/A1MZXL / TNPH1233 1A

T-con 6870C-0852A / 6871L-6461A

Power supply TZRNP01HQXE / TNPA7067 3P

Used in TX-55JZW984

Used with Panel/display LE550AQD EP C1

Only sold as…

Complete set of boards consisting of :

Mainboard TXN/A1KJVG / TNPH1204 1A

Power supply TZRNP01WWWE / TNP4G646 1P

Used in TX-40GXX889

Used with Panel/display V400DJ2-B02

Only sold as complete set.

ALWAYS CHECK THE "TXN" OR…

Complete set of boards consisting of :

Mainboard 23798318 / 17MB185

T-con PT500GT02-4-C-3

Power supply 23623668 / 17IPS72P

Used in TX-50LX650E

Used with Panel/display VES500QNZH-N2-Z01

Only sold as complete set.

ALWAYS…

Complete set of boards consisting of :

Mainboard TZRNP01TWXE / TNPH1247 1A

T-con 7ADDJ1012

Power supply SHG5002A-101H / 81-PBE043-H2A01BP

Used in TX-43LXW834

Used with Panel/display LVU430CMDX

Only sold as complete…

Complete set of boards consisting of :

Mainboard TZRNP01TCXE / TNPH1247 1A

T-con TD-000P / ST6451D06-3 / 34291100

Power supply PW.A240W2.781 / PW.A240W 2.781-M-02

Used in TX-65LXW835

Used with Panel/display LVU650CSDX…

Complete set of boards consisting of :

Mainboard 23798314 / 17MB185 / 180721R2A

T-con 6870C-0805A / 6871L-6387B

Power supply 23623614 / 17IPS72P

Used in TX-43LX650E

Used with Panel/display VES430QNZL-N2-Z01

Only sold as…

Complete set of boards consisting of :

Mainboard TXN/A1JAXE / TNPH1234 1A

Power supply TZNRP01JAXE / TNP4G646 2P

Used in TX-40JXX889

Used with Panel/display V400DJ2-B02

Only sold as complete set.

ALWAYS CHECK THE "TXN" OR…

Complete set of boards consisting of :

Mainboard TNPH1147 1A / TXN/A1AEVG

T-con MARDK3S71

Power supply TNPA6198 1P / TXN/P1XNVE

Used in TX-58DXN788

Used with Panel/display V580DK3-KS7

Only sold as complete set.

ALWAYS CHECK…

Complete set of boards consisting of :

Mainboard TXN/A1GGWE / TNPH1179 1A

T-con 6870C-0697A / 6871L-4927D

Power supply TZRNP01EMWE / TNPA6397 1P

Used in TX-43EXW604

Used with Panel/display TXZFL41KFCX

Only sold as complete…

Complete set of boards consisting of :

Mainboard TXN/A1KLVG / TNPH1204 1A

T-con 6870C-0769A / 6871L-5951A

Power supply TZRNP01WSWE / TNPA6699 2P

Used in TX-43GXN938

Used with Panel/display TZLP289KKAA

Only sold as complete…

Complete set of boards consisting of :

Mainboard TXN/A1JLVG / TNPH1024 1A

T-con 6870C-0769A / 6871L-5986A

Power supply TZRNP01VBWE / TNPA6699 2P

Used in TX-49GXN938

Used with Panel/display TXFZL49KKAB

Only sold as complete…

Complete set of boards consisting of :

Mainboard TXN/A1PQWE / TNPH1197 2A

T-con 6870C-0757A / 6871L-5478A

Power supply TZRNP01REWE / TNPA6699 1P

Used in TX-55FXW724

Used with Panel/display TXFZL55KHAA

Only sold as complete…

Complete set of boards consisting of :

Mainboard TXN/A1ZQVE / TNPH1116 1A

T-con 4A2HK7S61

Power supply TXN/P1UQVE / TNPA6070 1P

Used in TX-40DS630E

Used with Panel/display V400HK7-LS6

Only sold as complete set.

ALWAYS CHECK…

Complete set of boards consisting of :

Mainboard TXN/A1FTXE / TNPH1212 1A

T-con 6870C-0749A / 6871L-5439B

Power supply TZRNP01BJXE / TNPA6699 3A

Used in TX-43HXN978

Used with Panel/display TZMZL43KK01

Only sold as complete…

Complete set of boards consisting of :

Mainboard 23578326 / 17MB130T

T-con L37393E / 15Y_65_FU11BPCMTA4V0.4

Power supply 23541289 / 17IPS55

Used in TX-65GXW585

Used with Panel/display VES650QNTS-2W-U11

Only sold as complete…

Complete set of boards consisting of :

Mainboard 23634803 / 17MB230

T-con HV430QUBH10 / 44-9771497

Power supply 23627694 / 17IPS72P

Used in TX-43HX630E

Used with Panel/display VES430NZB-N2-Z01

Only sold as complete…

Complete set of boards consisting of :

Mainboard 23495360 / 17MB130S

Power supply 23495240 / IPS72P

Used in TX-55XF555E

Used with Panel/display VES550QNYS-2D-N01

Only sold as complete set.

ALWAYS CHECK THE NUMBER(S) ON THE…

Complete set of boards consisting of :

Mainboard TXN/A1JXVG / TNPH1204 1A

T-con MACDJ4025

Power supply TZRNP01WUWE / TNP4G648 1P

Used in TX-58GXF887

Used with Panel/display V580DJ4-B02

Only sold as complete set.

ALWAYS…

Complete set of boards consisting of :

Mainboard TNPH1179 1A / TXN/A1GFWE

T-con 6870C-0697A / 6871L-4925C

Power supply TNPA6376 1P / TZRNP01ELWE

Used in TX-49EXW584

Used with Panel/display TZLP213KFCA

Only sold as complete…

Complete set of boards consisting of :

Mainboard 23578326 / 17MB130T

T-con L37393E / 15Y_65_FU11BPCMTA4V0.4

Power supply 23541289 / 17IPS55 / 111018R4B

Used in TX-65GXW585

Used with Panel/display VES650QNTS-2W-U11

Only sold…

Complete set of boards consisting of :

Mainboard TXN/A1KAVE / TNPH1077 1A

T-con 6870C-0450A / 6871L-3268A

Power supply TXN/P1GUVE / TNPA6011 1P

Used in TX-42AS570E

Used with Panel/display LC420DUF VG F1

Only sold as complete…

Complete set of boards consisting of :

Mainboard TXN/A1YYVE / TNP4G592 1A

T-con 6870C-0442B / 6871L-4604A

Power supply TXN/P1YYVE / TNPA6076 1P

Used in TX-32DSW504S

Used with Panel/display TXFZL01KECH1

Only sold as complete…
